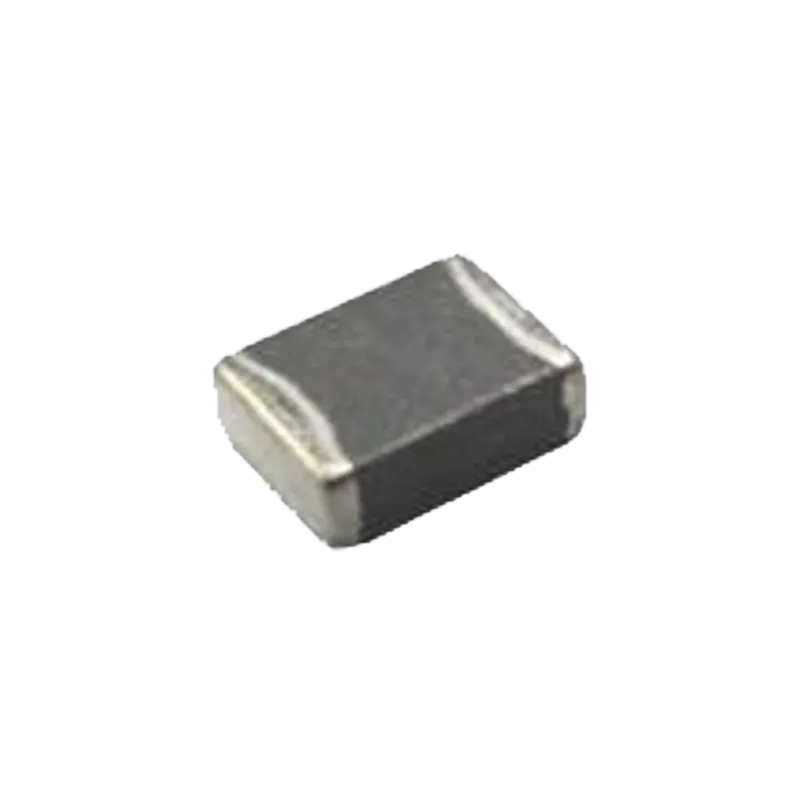

SMD 功率电感器（合金粉） HMC SERIES-CA
FEATURES
* Magnetic metal powder inductor.
* :: Compact design
* :: High current, low DCR, high efficiency
* :: Very low acoustic noise and very low leakage flux noise
* :: High reliability
* :: 100% Lead(Pb)-Free and RoHS compliant
Include Series
| range | Length (mm) | Width (mm) | Height (mm) | Inductance (µH) | DC resistance (mΩ)Max. |
Saturation current (A) |
|---|---|---|---|---|---|---|
| HMC0315-CA | 3.2±0.2 | 3.6±0.2 | 1.5max | 0.22~3.3 | 12~160 | 3.2~11 |
| HMC0302-CA | 3.2±0.2 | 3.6±0.2 | 2.0max | 0.33~4.7 | 17~215 | 3.2~10 |
| HMC0412-CA | 4.06±0.3 | 4.49±0.40 | 1.2max | 0.47~10 | 20~240 | 1.4~7.0 |
| HMC0415-CA | 4.06±0.3 | 4.49±0.40 | 1.5max | 0.22~4.7 | 11~150 | 2.8~11 |
| HMC0402-CA | 4.06±0.3 | 4.49±0.40 | 2.0max | 0.10~10 | 4.5~220 | 2.0~23.0 |
| HMC0403-CA | 4.06±0.3 | 4.49±0.40 | 3.0max | 0.47~10 | 7.6~140 | 3.0~10.9 |
| HMC0515-CA | 5.3max | 5.6±0.3 | 1.5max | 0.22~4.7 | 8.5~135 | 3.5~16 |
| HMC0518-CA | 5.3max | 5.6±0.3 | 1.8max | 0.47~10 | 9.0~200 | 2.0~15 |
| HMC0502-CA | 5.3max | 5.6±0.3 | 2.0max | 0.22~10 | 6.0~200 | 2.0~16.5 |
| HMC0503-CA | 5.3max | 5.6±0.3 | 3.0max | 0.22~10 | 5.0~130 | 3.5~25 |
| HMC0615-CA | 6.6±0.3 | 7.6max | 1.5max | 0.1~6.8 | 3.1~135 | 3.5~24 |
| HMC0618-CA | 6.6±0.3 | 7.6max | 1.8max | 0.1~10 | 2.8~150 | 3.0~32 |
| HMC0602-CA | 6.6±0.3 | 7.6max | 2.0max | 0.1~15 | 2.8~170 | 2.5~32 |
| HMC0624-CA | 6.6±0.3 | 7.6max | 2.4max | 0.1~22 | 2.5~230 | 2.5~35 |
| HMC0603-CA | 6.6±0.3 | 7.6max | 3.0max | 0.18~33 | 1.6~245 | 2.5~40 |
| HMC0604-CA | 6.6±0.3 | 7.6max | 4.0max | 0.15~47 | 1.0~260 | 2.0~48 |
| HMC0605-CA | 6.6±0.3 | 7.6max | 5.0max | 0.15~47 | 1.0~225 | 2.5~50 |
| HMC0705-CA | 7.8±0.5 | 7.6±0.5 | 5.0max | 1.0~68 | 5.0~225 | 2.5~20 |
| HMC0803-CA | 8.0±0.5 | 9.0±0.5 | 3.0max | 0.22~33 | 2.3~204 | 3.2~36 |
| HMC0804-CA | 8.0±0.5 | 9.0±0.5 | 4.0max | 0.22~33 | 2.4~174 | 3.2~40.5 |
| HMC1003-CA | 10.5max | 11.8max | 3.0max | 0.22~22 | 1.0~90.0 | 4.0~40 |
| HMC1004-CA | 10.5max | 11.8max | 4.0max | 0.15~47 | 0.6~145 | 4.0~65 |
| HMC1005-CA | 10.0±0.3 | 11.0±0.5 | 5.0max | 0.15~100 | 0.6~280 | 4.0~65 |
| HMC1235-CA | 12.8±0.5 | 13.5±1.0 | 3.5max | 0.15~22 | 0.9~110 | 5.5~65 |
| HMC1205-CA | 12.8±0.5 | 13.5±1.0 | 5.0max | 0.22~68 | 0.7~180 | 4.0~60 |
| HMC1265-CA | 12.8±0.5 | 13.5±1.0 | 6.5max | 0.22~68 | 0.7~115 | 5.0~70 |
| HMC1704-CA | 17.0±0.5 | 18.0±1.0 | 4.0max | 0.33~68 | 1.28~85 | 6.5~60 |
| HMC1707-CA | 17.0±0.5 | 18.0±1.0 | 7.0max | 0.47~47 | 1.3~52 | 9.0~70 |
