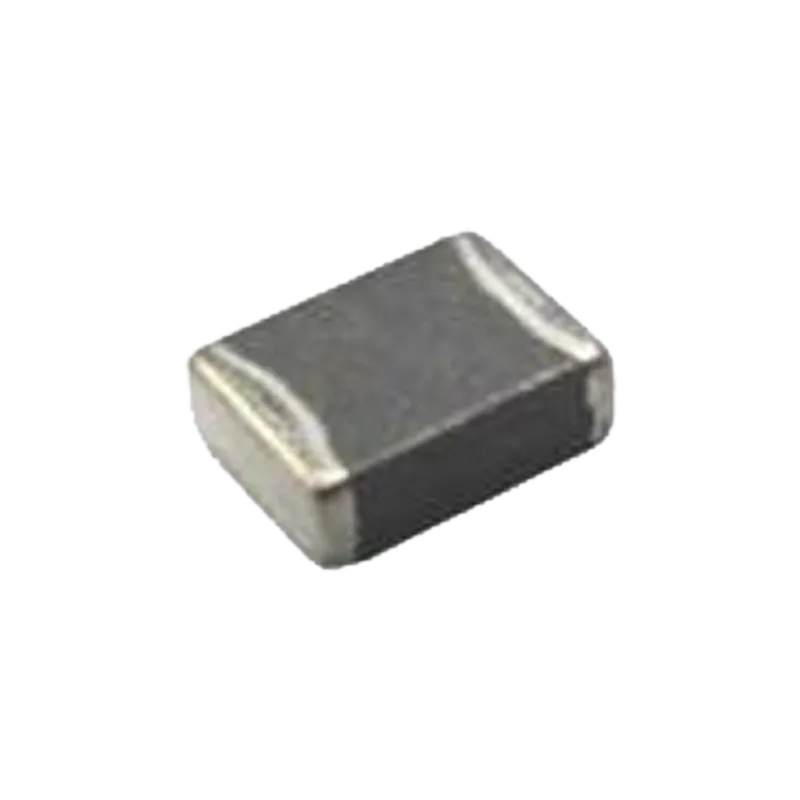

SMD绕线共模线圈 HMCC10/11/21/31-CA

FEATURES

* :: RoHS Compliant

* :: Miniature SMD type common mode filter for fully automated assembly

* Wide impedance range (30Ω ~ 2200Ω) for noise suppression

* :: Excellent solderability

Category: Vehicle Specification

Online Consultation

Include Series

range	Length (mm)	Width (mm)	Height (mm)	Inductance (µH)	DC resistance (mΩ)Max.	Saturation current (A)
HMCC10-CA	1.60±0.2	0.80±0.2	1.10±0.2	25~220	0.077~0.209	500.00
HMCC11-CA	1.25±0.2	1.00±0.2	0.80±0.1	25~330	0.3~1.3	100~400
HMCC21-CA	2.05±0.2	1.25±0.2	1.20±0.2	30~900	0.2~0.6	80~450
HMCC31-CA	3.20±0.2	1.60±0.2	1.90±0.2	90~2200	0.3~1.2	200~370

Parameter filtering

range	model number	PDF	阻抗(?)	Tolerance (±%)	Test Conditions (MHz)	Resistance (Ω)Max	Saturation Current (mA)Max	Rated Voltage (Vdc)	Withstanding Voltage(Vdc)	Insulation Resistance (MΩ)Min	Working temperature (℃)	Length (mm)	Width (mm)	Height (mm)	use	state of affairs
HMCC10-CA	HMCC10T-250M-CA	HMCC.pdf	25	20,25	100	0.077	500	50	125	10	-40℃-105℃	1.60±0.2	0.80±0.2	1.10±0.2	Vehicle Specification	mass production
HMCC10-CA	HMCC10T-600M-CA	HMCC.pdf	60	20,25	100	0.109	500	50	125	10	-40℃-105℃	1.60±0.2	0.80±0.2	1.10±0.2	Vehicle Specification	mass production
HMCC10-CA	HMCC10T-900M-CA	HMCC.pdf	90	20,25	100	0.142	500	50	125	10	-40℃-105℃	1.60±0.2	0.80±0.2	1.10±0.2	Vehicle Specification	mass production
HMCC10-CA	HMCC10T-121M-CA	HMCC.pdf	120	20,25	100	0.16	500	50	125	10	-40℃-105℃	1.60±0.2	0.80±0.2	1.10±0.2	Vehicle Specification	mass production
HMCC10-CA	HMCC10T-141M-CA	HMCC.pdf	140	20,25	100	0.174	500	50	125	10	-40℃-105℃	1.60±0.2	0.80±0.2	1.10±0.2	Vehicle Specification	mass production
HMCC10-CA	HMCC10T-221M-CA	HMCC.pdf	220	20,25	100	0.209	500	50	125	10	-40℃-105℃	1.60±0.2	0.80±0.2	1.10±0.2	Vehicle Specification	mass production
HMCC11-CA	HMCC11T-250T-CA	HMCC.pdf	25	30	100	0.3	400	50	125	100	-40℃-105℃	1.25±0.2	1.00±0.2	0.80±0.1	Vehicle Specification	mass production
HMCC11-CA	HMCC11T-600M-CA	HMCC.pdf	60	20	100	0.4	300	50	125	100	-40℃-105℃	1.25±0.2	1.00±0.2	0.80±0.1	Vehicle Specification	mass production
HMCC11-CA	HMCC11T-670M-CA	HMCC.pdf	67	20	100	0.25	300	50	125	100	-40℃-105℃	1.25±0.2	1.00±0.2	0.80±0.1	Vehicle Specification	mass production
HMCC11-CA	HMCC11T-900M-CA	HMCC.pdf	90	20	100	0.3	250	50	125	100	-40℃-105℃	1.25±0.2	1.00±0.2	0.80±0.1	Vehicle Specification	mass production
HMCC11-CA	HMCC11T-121M-CA	HMCC.pdf	120	20	100	0.4	200	50	125	100	-40℃-105℃	1.25±0.2	1.00±0.2	0.80±0.1	Vehicle Specification	mass production
HMCC11-CA	HMCC11T-161M-CA	HMCC.pdf	160	20	100	0.43	160	50	125	100	-40℃-105℃	1.25±0.2	1.00±0.2	0.80±0.1	Vehicle Specification	mass production
HMCC11-CA	HMCC11T-201M-CA	HMCC.pdf	200	20	100	0.8	120	50	125	100	-40℃-105℃	1.25±0.2	1.00±0.2	0.80±0.1	Vehicle Specification	mass production
HMCC11-CA	HMCC11T-331Y-CA	HMCC.pdf	330	25	100	1.3	100	50	125	100	-40℃-105℃	1.25±0.2	1.00±0.2	0.80±0.1	Vehicle Specification	mass production
HMCC21-CA	HMCC21T-300M-CA	HMCC.pdf	30	20	100	0.2	450	50	125	10	-40℃-105℃	2.05±0.2	1.25±0.2	1.20±0.2	Vehicle Specification	mass production
HMCC21-CA	HMCC21T-670M-CA	HMCC.pdf	67	20	100	0.25	400	50	125	10	-40℃-105℃	2.05±0.2	1.25±0.2	1.20±0.2	Vehicle Specification	mass production
HMCC21-CA	HMCC21T-750M-CA	HMCC.pdf	75	20	100	0.3	360	50	125	10	-40℃-105℃	2.05±0.2	1.25±0.2	1.20±0.2	Vehicle Specification	mass production
HMCC21-CA	HMCC21T-900M-CA	HMCC.pdf	90	20	100	0.35	330	50	125	10	-40℃-105℃	2.05±0.2	1.25±0.2	1.20±0.2	Vehicle Specification	mass production
HMCC21-CA	HMCC21T-121M-CA	HMCC.pdf	120	20	100	0.3	400	50	125	10	-40℃-105℃	2.05±0.2	1.25±0.2	1.20±0.2	Vehicle Specification	mass production
HMCC21-CA	HMCC21T-161M-CA	HMCC.pdf	160	20	100	0.35	350	50	125	10	-40℃-105℃	2.05±0.2	1.25±0.2	1.20±0.2	Vehicle Specification	mass production
HMCC21-CA	HMCC21T-181M-CA	HMCC.pdf	180	20	100	0.35	330	50	125	10	-40℃-105℃	2.05±0.2	1.25±0.2	1.20±0.2	Vehicle Specification	mass production
HMCC21-CA	HMCC21T-201M-CA	HMCC.pdf	200	20	100	0.35	330	50	125	10	-40℃-105℃	2.05±0.2	1.25±0.2	1.20±0.2	Vehicle Specification	mass production
HMCC21-CA	HMCC21T-221M-CA	HMCC.pdf	220	20	100	0.35	310	50	125	10	-40℃-105℃	2.05±0.2	1.25±0.2	1.20±0.2	Vehicle Specification	mass production
HMCC21-CA	HMCC21T-261M-CA	HMCC.pdf	260	20	100	0.4	300	50	125	10	-40℃-105℃	2.05±0.2	1.25±0.2	1.20±0.2	Vehicle Specification	mass production
HMCC21-CA	HMCC21T-301M-CA	HMCC.pdf	300	20	100	0.4	290	50	125	10	-40℃-105℃	2.05±0.2	1.25±0.2	1.20±0.2	Vehicle Specification	mass production
HMCC21-CA	HMCC21T-361M-CA	HMCC.pdf	360	20	100	0.45	280	50	125	10	-40℃-105℃	2.05±0.2	1.25±0.2	1.20±0.2	Vehicle Specification	mass production
HMCC21-CA	HMCC21T-371M-CA	HMCC.pdf	370	20	100	0.45	280	50	125	10	-40℃-105℃	2.05±0.2	1.25±0.2	1.20±0.2	Vehicle Specification	mass production
HMCC21-CA	HMCC21T-501M-CA	HMCC.pdf	500	20	100	0.55	170	50	125	10	-40℃-105℃	2.05±0.2	1.25±0.2	1.20±0.2	Vehicle Specification	mass production
HMCC21-CA	HMCC21T-671M-CA	HMCC.pdf	670	20	100	0.6	140	50	125	10	-40℃-105℃	2.05±0.2	1.25±0.2	1.20±0.2	Vehicle Specification	mass production
HMCC21-CA	HMCC21T-901M-CA	HMCC.pdf	900	20	100	0.6	80	50	125	10	-40℃-105℃	2.05±0.2	1.25±0.2	1.20±0.2	Vehicle Specification	mass production
HMCC31-CA	HMCC31T-900M-CA	HMCC.pdf	90	20	100	0.3	370	50	125	10	-40℃-105℃	3.20±0.2	1.60±0.2	1.90±0.2	Vehicle Specification	mass production
HMCC31-CA	HMCC31T-121M-CA	HMCC.pdf	120	20	100	0.3	370	50	125	10	-40℃-105℃	3.20±0.2	1.60±0.2	1.90±0.2	Vehicle Specification	mass production
HMCC31-CA	HMCC31T-161M-CA	HMCC.pdf	160	20	100	0.4	340	50	125	10	-40℃-105℃	3.20±0.2	1.60±0.2	1.90±0.2	Vehicle Specification	mass production
HMCC31-CA	HMCC31T-221M-CA	HMCC.pdf	220	20	100	0.4	320	50	125	10	-40℃-105℃	3.20±0.2	1.60±0.2	1.90±0.2	Vehicle Specification	mass production
HMCC31-CA	HMCC31T-261M-CA	HMCC.pdf	260	20	100	0.5	310	50	125	10	-40℃-105℃	3.20±0.2	1.60±0.2	1.90±0.2	Vehicle Specification	mass production
HMCC31-CA	HMCC31T-601M-CA	HMCC.pdf	600	20	100	0.8	260	50	125	10	-40℃-105℃	3.20±0.2	1.60±0.2	1.90±0.2	Vehicle Specification	mass production
HMCC31-CA	HMCC31T-102M-CA	HMCC.pdf	1000	20	100	1	230	50	125	10	-40℃-105℃	3.20±0.2	1.60±0.2	1.90±0.2	Vehicle Specification	mass production
HMCC31-CA	HMCC31T-222M-CA	HMCC.pdf	2200	20	100	1.2	200	50	125	10	-40℃-105℃	3.20±0.2	1.60±0.2	1.90±0.2	Vehicle Specification	mass production
